How to take apart an Asus Eee PC 900HD

This guide shows how to disassemble an Asus Eee PC 900HD to replace the fan (or battery or memory or hard disk or keyboard or motherboard or wireless networking card).

Proceed at your own risk.  This will void your warranty, but at this point, you probably don’t have a warranty.

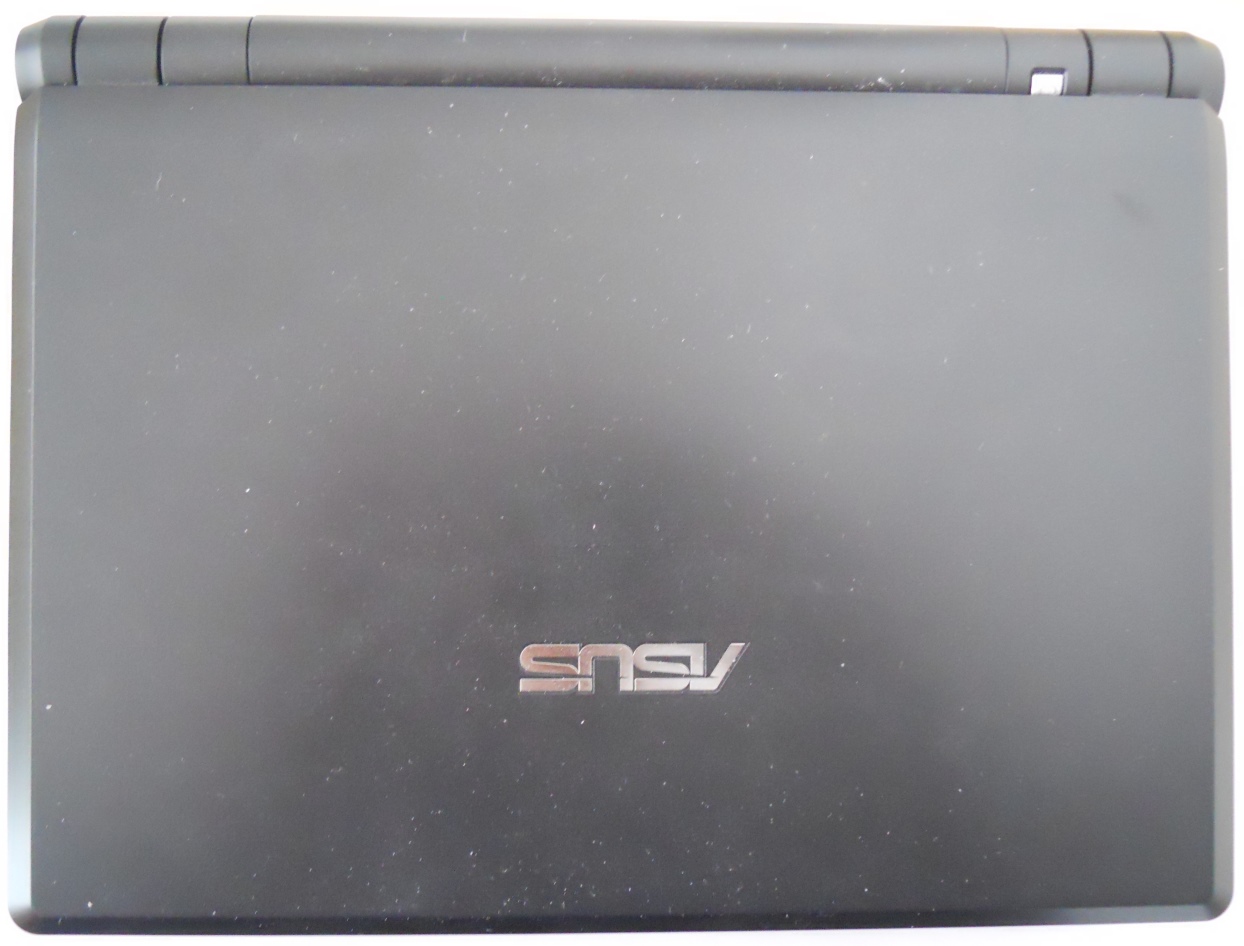

1) Here’s a top view of the Asus Eee PC 900HD:

Asus Eee PC 900HD top cover

Asus Eee PC 900HD top cover

If your computer doesn’t look like this, you don’t have an Asus Eee PC 900HD. You should probably look for a guide for your specific model.

2) Remove the battery

Asus Eee PC 900HD bottom cover

Asus Eee PC 900HD bottom cover

Slide apart the two latches and remove the battery pack.  Also, remove any SD card or SD slot filler.

3) Remove the screws to the hard disk & memory cover

Asus Eee PC 900HD bottom cover with battery removed

Asus Eee PC 900HD bottom cover with battery removed

Remove the screws and pop off the cover.

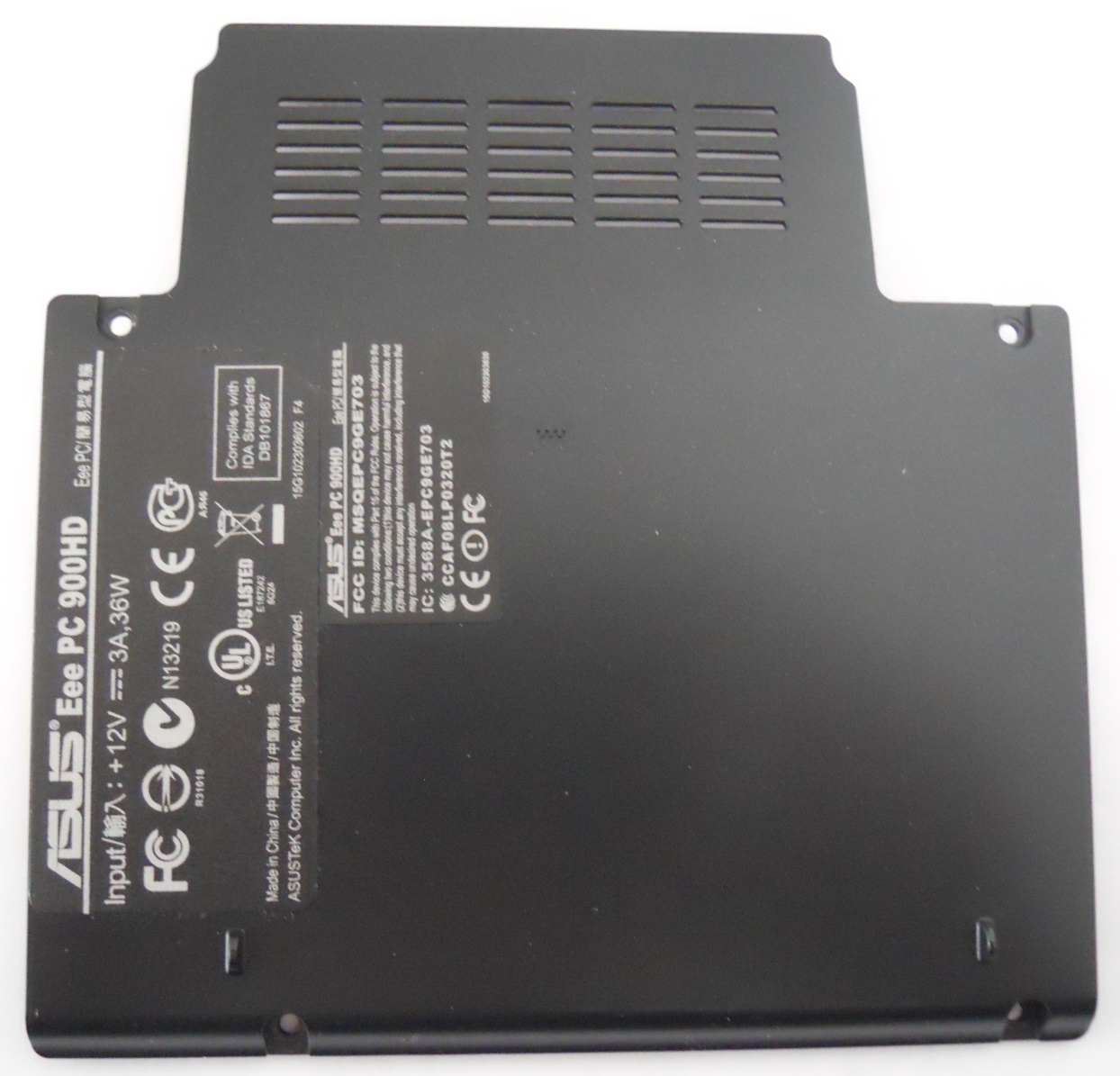

4) Here’s a close-up of the hard disk & memory cover:

Asus Eee PC 900HD hard disk and memory cover

Asus Eee PC 900HD hard disk and memory cover

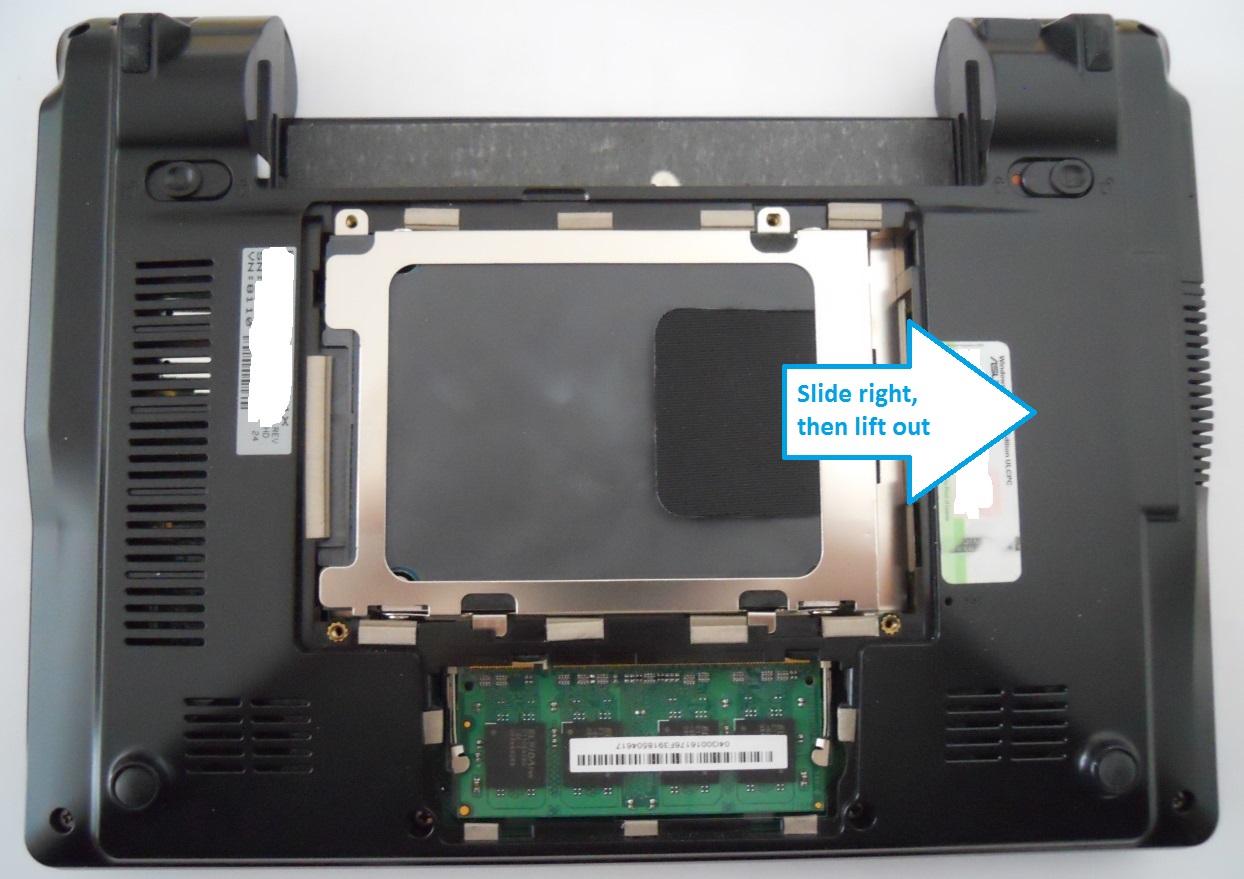

5) Remove the hard disk

Asus Eee PC 900HD view of hard disk

Asus Eee PC 900HD view of hard disk

Carefully slide the hard disk to the right and lift out.
