How to take apart an Asus Eee PC 900HD

6) Pop up the memory

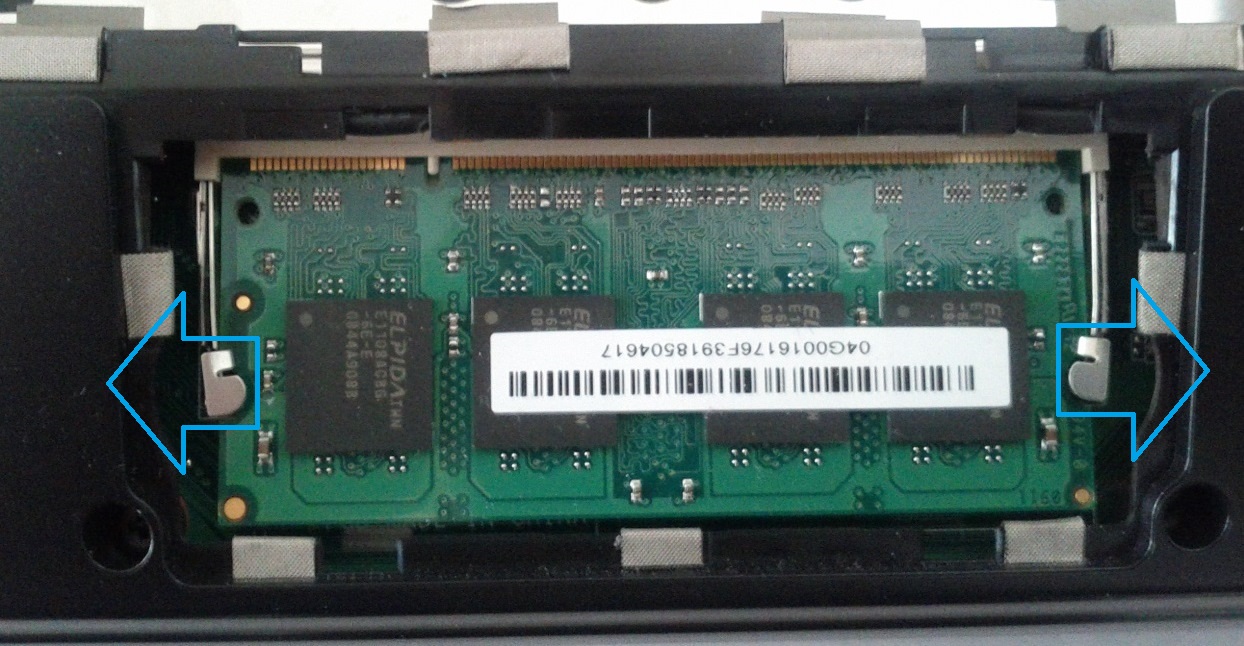

Asus Eee PC 900HD with memory in place

Asus Eee PC 900HD with memory in place

Slide apart the two metal clips.  The SO-DIMM memory will pop up.

7) Slide out the memory

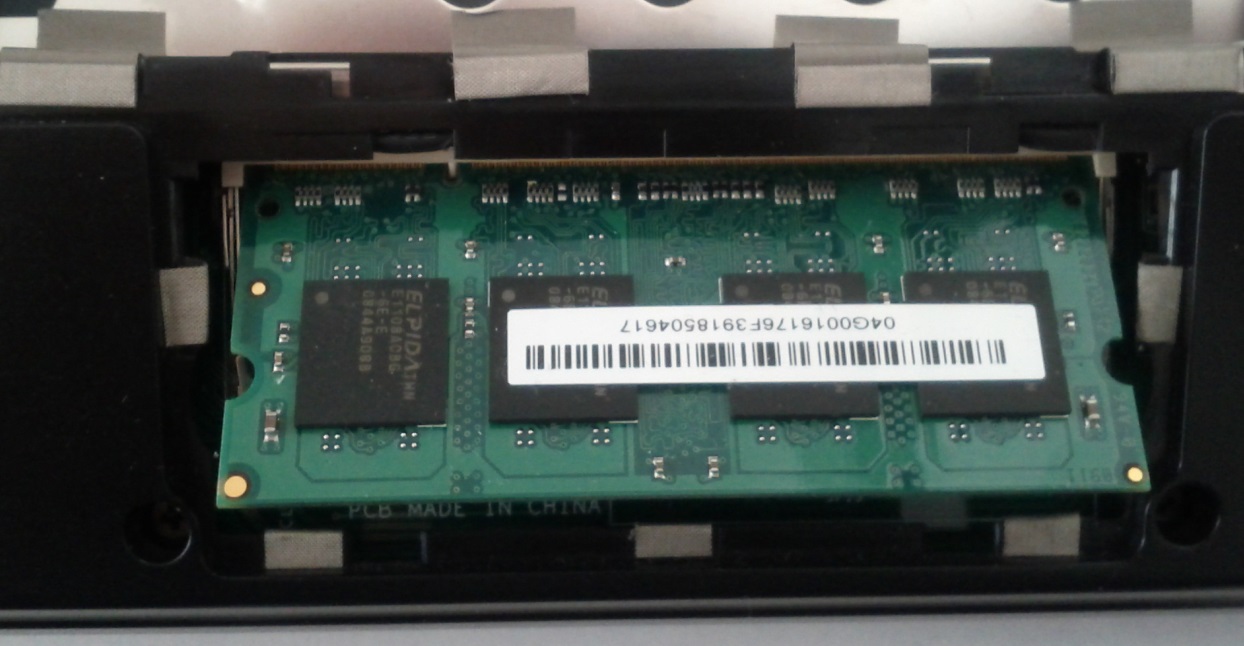

Asus Eee PC 900HD with memory popped up

Asus Eee PC 900HD with memory popped up

Slide out the memory and set aside.

8) Remove the screw in the hard disk slot

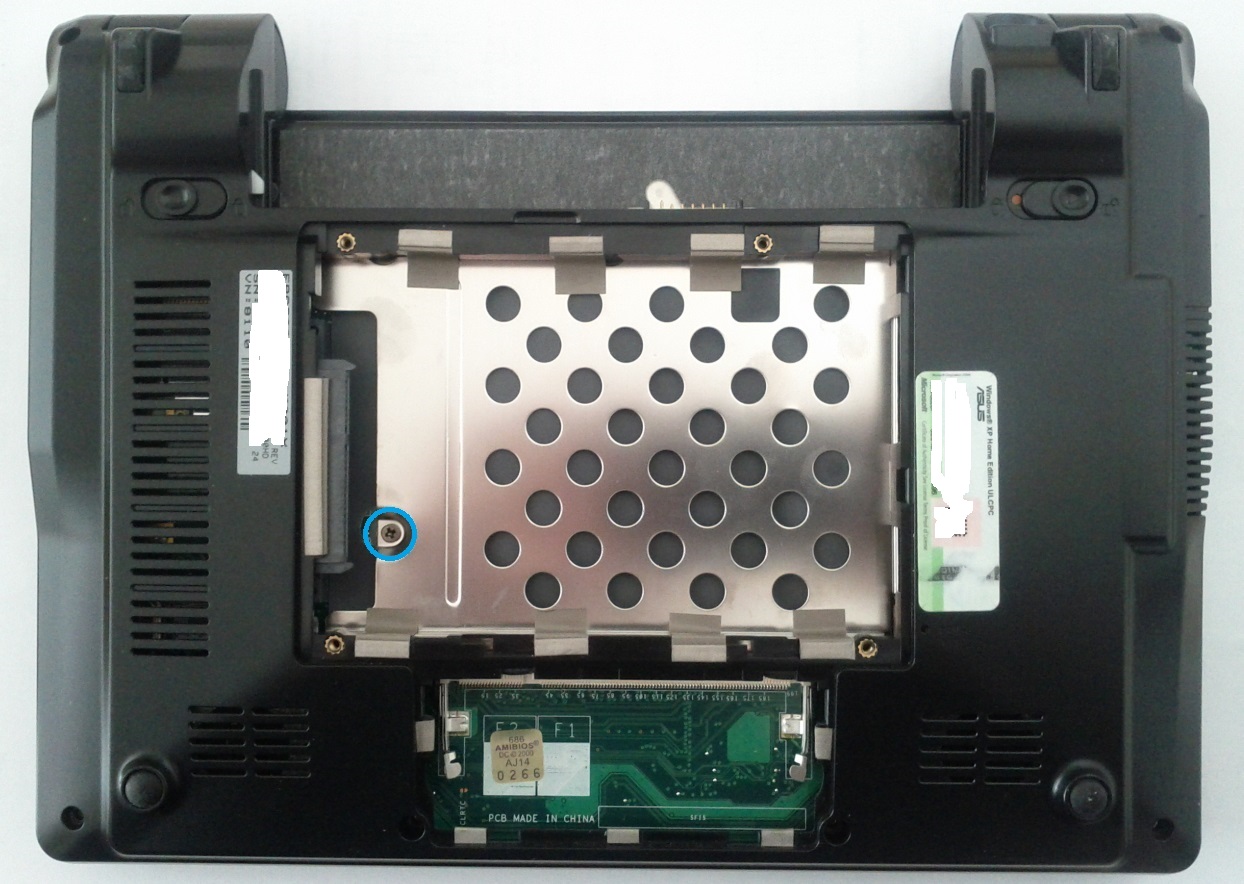

Asus Eee PC 900HD hard disk slot

Asus Eee PC 900HD hard disk slot

9) Pop the keyboard latches

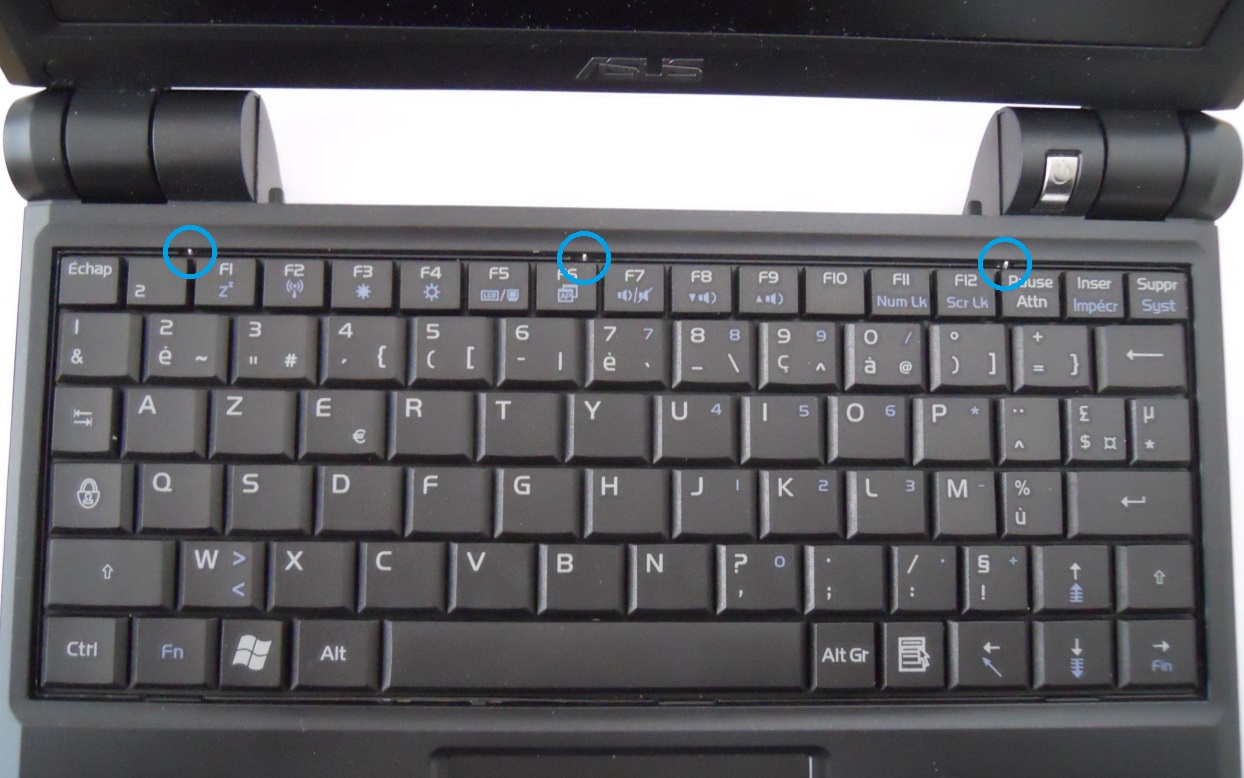

Asus Eee PC 900HD with keyboard in place

Asus Eee PC 900HD with keyboard in place

Gently press down with a thin flat screwdriver to release the three latches.  The top of the keyboard will pop up slightly.

10) Unplug the keyboard connector, then remove the keyboard

Asus Eee PC 900HD keyboard connector

Asus Eee PC 900HD keyboard connector

Slide the two black plastic tabs on each side of the keyboard ribbon cable and pull out the cable.
